FANS Selection with Airflow Duct Systems

Get a Free QUOTE

There's much to see here

So, take your time, look around, and shop with Airflow Duct Systems.

SALES and Fan installation

Products

We offer a range of commercial fans such as roof fans, inline fans,  centrifugal fans and axial fans, which finds application in commercial buildings, commercial kitchens and car parks.

Selection

Our experienced team can help you choose the efficient fan for your ventilation system to provide high airflow, energy-efficient and minimise noise and costs.

Installation

Airflow Ducts Systems provide complex fan installation alongside with ductwork.

Products

Vertical Centrifugal Roof FANS

Suitable for high temperature kitchens & vertical installations

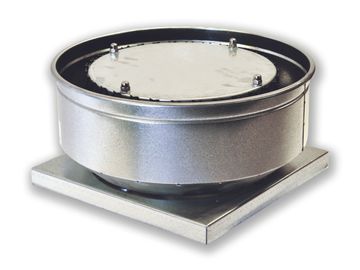

Airflow Duct Systems- Vertical Centrifugal Roof FAN MCV310 -560- high airflow

MCV310-560 Series

 Backward curved centrifugal impeller with high-quality external rotor motor for high-pressure exhaust applications.



- Performance tests are in accordance with ISO5801 (2017)

- Noise level tests are under BS848 Part 2 (1985) and DIN 45635 Part 38

- Fan diameter from 630mm to 710mm

- Fully weatherproof galvanized steel housing

- Sealed for life ball bearing motors

- Motors in single or three-phase, 2 speed and/or speed controllable.

- Bird mesh guard

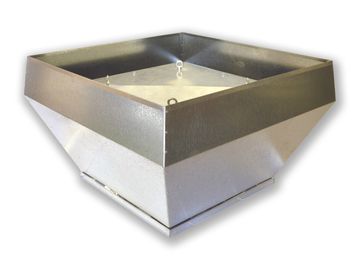

Airflow Duct Systems- Vertical Centrifugal Roof FAN MCV630 -710- high airflow

MCV630 - 710

  Backward curved centrifugal impeller with high-quality external rotor motor for high-pressure exhaust applications.


- Capable of handling up to 4200 L/Sec and static pressure up to 900 Pa

- Fan diameter from 630mm to 710mm

- Fully weatherproof galvanized steel housing

- Sealed for life ball bearing motors

- Motors in single or three-phase, 2 speed and/or speed controllable.

- Bird mesh guard


Roof Centrifugal Fans

Suitable for domestic & commercial installations

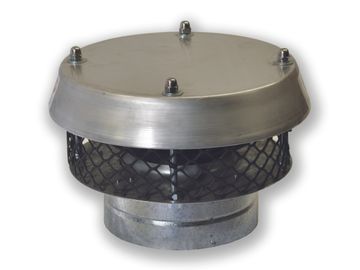

MCH 190-250 Series

 Backward curved centrifugal impeller with external rotor motor roof top fans


 - All metal construction & speed controllable
- Backward curved centrifugal impeller
- Bird mesh guard as standard
- Can be mounted at angles of 30°

- Sizes 190,225,250

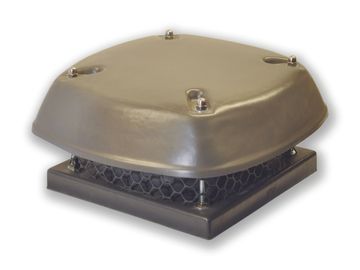

MCH 310-355 Series

 Backward curved centrifugal impeller with external rotor motor roof top fans



- All metal construction & speed controllable - Backward curved centrifugal impeller -

 Bird mesh guard as standard

- Can be mounted at angles of 30°

- MCH310 Plastic cap

- Sizes 310-355



MCR 190-250

 Backward curved centrifugal impeller with external rotor motor roof top fans



- All metal construction & speed controllable - Backward curved centrifugal impeller

- Bird mesh guard as standard

- Can be mounted at angles of 30°

-  Sizes 190, 225, 250


Roof FANS MV Style

High performance, exhaust fans for high-temperature kitchens & for vertical installations

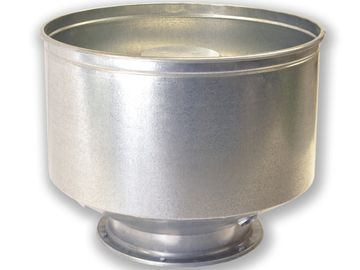

Airflow Duct Systems- High performance, exhaust fan, MV, airflow

Axial Roof Fans MV Series

High performance, exhaust fan, adjustable pitch impeller for high volume exhaust applications

- Capable of handling up to 6450 L/Sec and static pressure up to 250 Pa
- Fan diameter from 305mm to 660mm
- Fully weatherproof galvanized steel housing with grease trap connections
- Sealed for life ball bearing motors
- Aerofoil adjustable pitch impellers
- Motors in single or three phase, 2 speed and/or speed controllable.
- Circular connection with matching flange

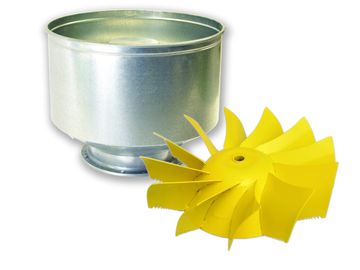

Airflow Duct Systems- High performance, exhaust fan,MVX, airflow

Mixflow Roof Fans MVX

High performance, en exhaust low noise,  impeller for volume exhaust mixflow medium applications.


-   Capable of handling up to 2400 L/Sec and static pressure up to 250 Pa

- Fan diameter from mm 457

- Fully weather proof galvanized steel housing

with grease trap connections

- Sealed for life ball bearing motors

- impeller Mixflow, aluminium

- Motors in single or three phase, 2 speed

and/or speed controllable.

- Circular connection with matching flange

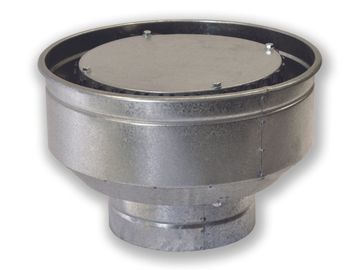

Airflow Duct Systems- Vertical Discharge Centrifugal Round Base
fan MVR

MVR Series

 Vertical Discharge Centrifugal Round Base.



Backward curved centrifugal impeller with external rotor motor.


 - Performance tests are in accordance with ISO5801 (2017)
- Noise level tests are under BS848 Part 2 (1985) and DIN 45635 Part 38
- Base sizes 250, 305, 381
- Models 250 & 305 Single phase
- Models 381 Single or 3 phase
- Fans are speed controllable
- Circular connection
- Low profile

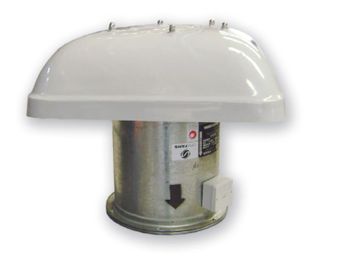

Roof centrifigul Supply Air Fans

Roof mounted downflow supply air

MUCR/S Series

Backward curved centrifugal impeller with high-quality external rotor motor for high pressure exhaust applications


- Capable of handling up to 3000 l/sec and static pressure of 700pa
- Performance tests are in accordance with ISO5801 (2017)
- Noise level tests are under BS848 Part 2 (1985) and DIN 45635 Part 38
- Fan Diameter from 310 to 630
- Sealed for life ball bearing motor
- Motors in single or three phase, 2 speed and/or speed controllable
- Bird mesh guard

MUAR/S Series

 Makeup air fan for exhaust systems


 - Roof mounted supply air size 305 - 500mm

- Available in single & 3 phase

- Galvanised steel casing

- Flange mounting with matching flange

- Fibreglass caps grey

- Bird mesh guard

- Adjustable impellers

 - Performance tests are in accordance with ISO5801 (2017)

- Noise level tests are under BS848 Part 2 (1985) and DIN 45635 Part 38





Inline Fans

Suitable for supply or exhaust applications. Duct mounted fans . Can be used in kitchens, hospitals, schools, residential apartments, carparks.

Airflow Duct Systems - inline centrifugal fans, MUC

Centrifugal Inline FANS MUC Series

Backward curved centrifugal impeller with high-quality external rotor motor for high-pressure exhaust applications.


- Capable of handling up to 4200 L/Sec and static pressure up to 900 Pa
- Performance tests are in accordance with ISO5801 (2017)
- Noise level tests are under BS848 Part 2 (1985) and DIN 45635 Part 38
- Fan diameter from 310mm to 710mm
- Sealed for life ball bearing motors
- Motors in single or three phase, 2 speed and/or speed controllable.

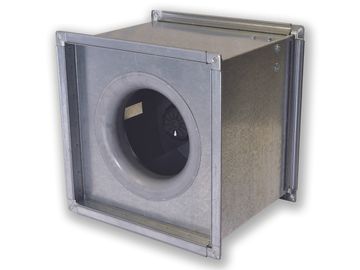

Airflow Duct Systems - inline centrifugal fans, MUCH

Centrifugal Inline FANS MUCH Series

High efficiency backward curved aluminium impeller with the optimised inlet.


Suitable for duct mounting in any position.


- Supply and return air

-Available Sizes (mm) 310, 355, 400, 450, 500, 560, 630, 710

- TEFC motor sealed for life bearings

- Available in single & 3 phase models

- Galvanised steel fan casing with flanged end connections.

 - Performance tests are in accordance with ISO5801 (2017) + Sound ISO 3744/3745

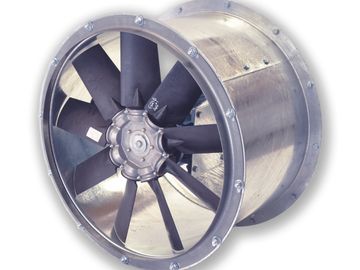

Airflow Duct Systems - inline axial fans, MUA

Axial Inline FANS MUA Series

 Available in a wide range of airflows to suit most applications.


 Standard fans from 305 - 630mm


- The casing is made from Heavy-gauge mild steel

and hot-dip galvanised

- Motor wired to external junction box

- Impellers plastic with an adjustable angle blade

- Performance tests are in accordance with

ISO5801 (2017)

- Noise level tests are under BS848 Part 2

(1985)
